CARACTERISTIQUES MATERIELLES

Interface

• 1 × 10/100/1000 Mbps LAN/WAN Port
• 3 × 10/100/1000 Mbps LAN Ports
• 1 × Micro SIM Card Slot

Bouton

• WPS/Reset Button, WiFi On/Off Button, Power On/Off Button

Alimentation externe

• Power Adapter: : Input Power 100-240v~50/60 Hz 0.6A
• Output parameter 12VDC 1.5A

Dimensions (LxPxH)

• 202 × 141 × 33.6 mm

Antenne

• 2 × Detachable 4G LTE Antennas

CARACTÉRISTIQUES WIFI

Standards WiFi

• IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Fréquence

• 2.4 GHz and 5 GHz

Débit du signal

• 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Sensibilité de réception

• 5 GHz: 11a 54M: -77 dBm
• 11ac HT20: -73 dBm
• 11ac HT40: -68 dBm
• 11ac HT80 : -64 dBm
• 11n HT20: -77 dBm
• 11n HT40: -73 dBm
• 2.4 GHz: 11g 54M: -74 dBm
• 11n HT20: -72 dBm
• 11n HT40: -69 dBm

Puissance de transmission

• < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Fonctions WiFi

• Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover

• Yes

Sécurité WiFi

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Type de réseau

• 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Carrier Aggregation:

• B1+B3/B5/B7/B8/B20
• B3+B1/B3/B5/B7/B8/B20/B28/B38/B40
• B5+B1/B3/B5/B7/B40
• B7+B1/B3/B5/B7/B8/B20/B28
• B8+B1/B3/B7
• B20+B1/B3/B7
• B28+B3/B7/B40
• B38+B38
• B40+B40
• B41+B41

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS

• Bandwidth Control

Sécurité

• DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

Type de WAN

• Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Administration

• TP-Link Cloud, Local Management, Remote Management

DHCP

• Server, DHCP Client List, Address Reservation

Redirection de port

• ALG, Virtual Server, Port Triggering, UPnP, DMZ

DNS dynamique

• TP-Link, DynDns, NO-IP

VPN

• PPTP VPN, OpenVPN

Contrôle d'accès

• Parental Control, Local Management Control

Sécurité Pare-feu

• DoS, SPI Firewall, IP Address Filter/Domain Filter,
• IP and MAC Address Binding

Protocoles

• IPv4, IPv6

Réseau invité

• 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

AUTRES

Certification

• CE, RoHS

Contenu de l'emballage

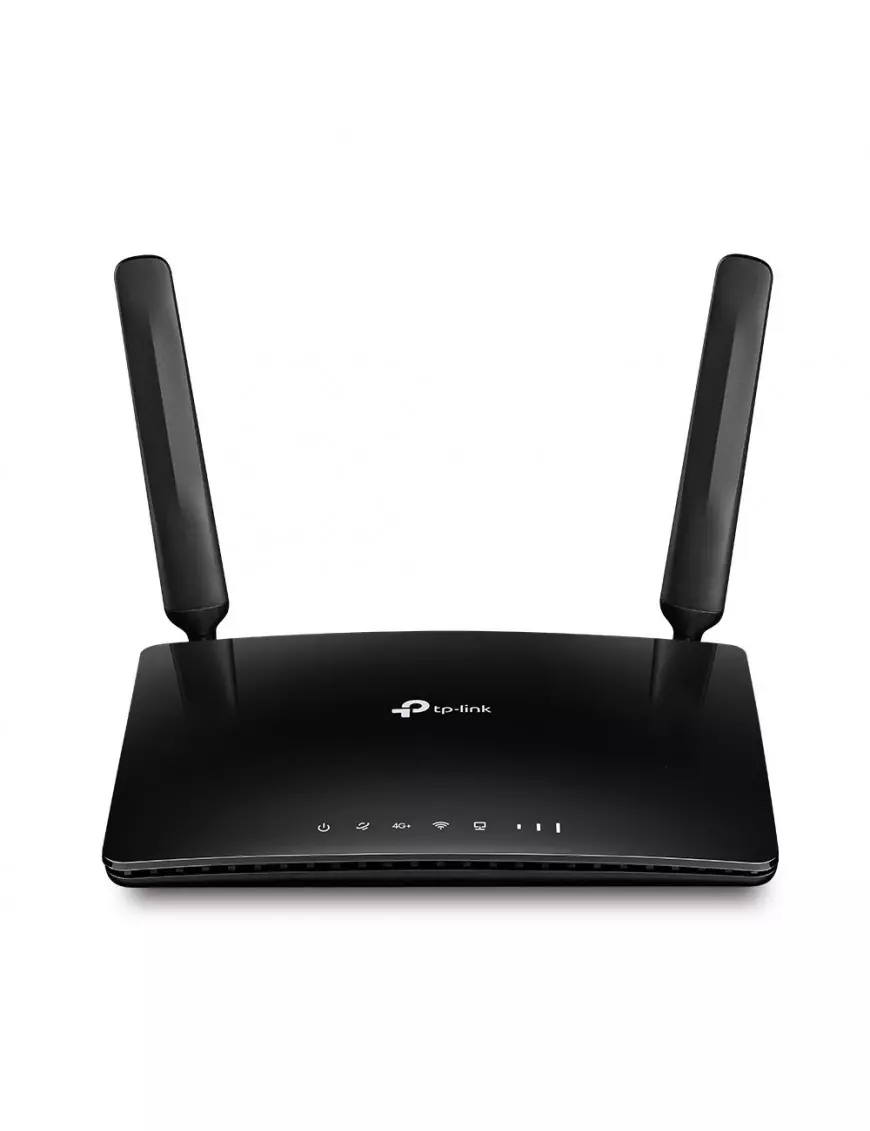

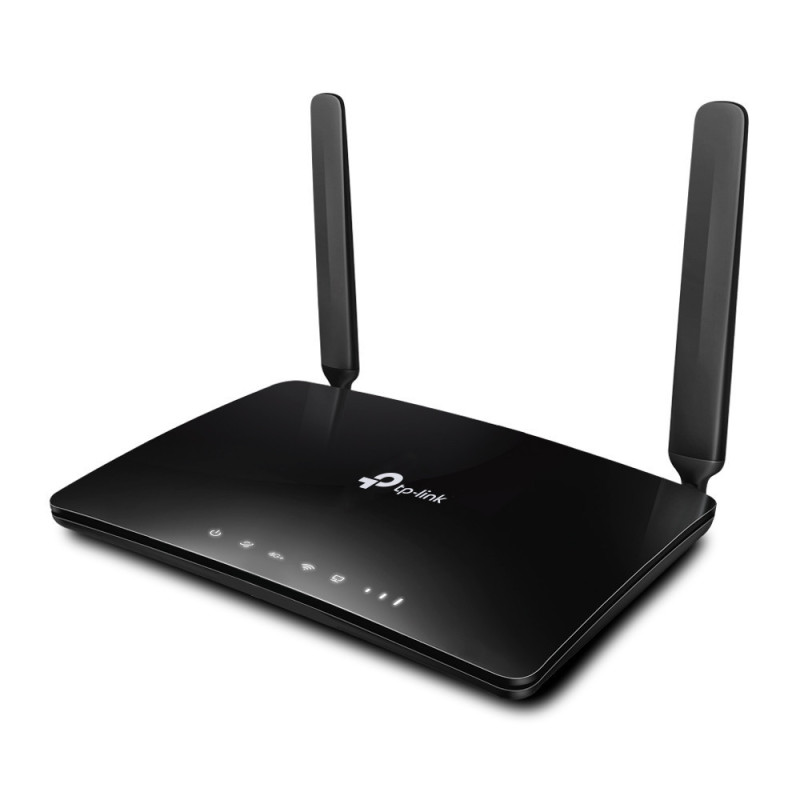

• 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Environnement

• Operating Temperature: 0℃~40℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
